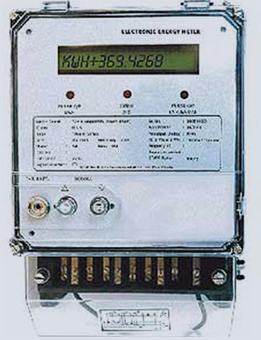

Single Phase Energy Meters

Get a Price/Quote

MOQ : 1 Unit

Single Phase Energy Meters Specification

Resolution
0.01 kWh

Measurement Range
0-40A

Current Range
10-40A

Application Media
Electricity Measurement

Temperature Range
-10C to +55C

Diameter
Standard Housing

Protection
IP51 Enclosure

Frequency
50Hz 5%

Capacity
Suitable for residential & commercial loads

Sensor Type
Shunt/Electronic

Equipment Type
Single Phase Electronic Energy Meter

Humidity %
Up to 95% RH (non-condensing)

Connectivity Type
Terminal Block

Material
Polycarbonate Body

Power Supply
230V AC, 50Hz

Power Consumption
<2W

Accuracy
Class 1.0

Display Type
LCD Digital Display

Range
0-99999 kWh

Weight
Approx. 0.5 kg

Terminal Cover
Extended, Sealable Type

Overload Capacity
120% for limited time

Standards Compliance
IS 13779/IEC 62053-21

Tamper Features
Multiple Tamper Proof

Dimensions
170mm x 120mm x 55mm

Mounting Type
Wall/Din Rail Mountable

Phase
Single Phase, 2 Wire

Reference Voltage
230V

Self Diagnostics
Available

Data Retention
>10 Years (EEPROM Memory)

Communication
Optional RS485/IR port

Starting Current
0.2% of Ib

Impulse Rate
1600 imp/kWh

Display Digits
Up to 6 Digits

Single Phase Energy Meters Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Single Phase Energy Meters

Unlock inestimable value with our Premier Single Phase Energy Meter, crafted for meritorious performance in both residential and commercial domains. Advance purchase enables you to secure competitive sale prices on this feature-rich, IS 13779/IEC 62053-21 compliant equipment. Boasting a high impulse rate of 1600 imp/kWh, advanced tamper-proofing, and self-diagnostics, it ensures precise readings with a Class 1.0 accuracy. Its polycarbonate body and IP51 enclosure guarantee robust protection. This energy meter is truly an unrivalled investment in reliable electricity monitoring and seamless load management.

Versatile Application and Practical Utility

Single Phase Energy Meters are ideal for both specific and general electricity measurement needs in residential flats, offices, or commercial establishments. Designed for wall or DIN rail mounting, these meters are applied directly at the electrical entry point or feeder panels. Users simply connect via the terminal block, ensuring a hassle-free setup. With a broad measurement and current range, these meters are perfect for consistent monitoring of day-to-day electricity consumption in diverse settings.

Certifications, Payment, and Delivery Policies

Our Single Phase Energy Meters carry certifications as per IS 13779 and IEC 62053-21 standards, ensuring quality and trust. Payment terms are flexible to benefit all partners, with advance booking options to secure inventory. We provide well-packaged samples on request. Once the order is confirmed, products are safely handed over to reliable freight services for prompt delivery. Timely shipment is a key priority, and all logistics are streamlined for customer convenience.

FAQ's of Single Phase Energy Meters:

Q: How can I install the Single Phase Energy Meter in my facility?

A: The meter supports both wall and DIN rail mounting. Simply connect the supply wires to the terminal block following the installation guide. Professional installation is recommended for safety.

Q: What are the key benefits of advance purchasing this energy meter?

A: Advance purchase ensures you secure the most competitive value pricing, avoid stock-outs during peak demand, and benefit from the latest product models and promotions.

Q: Where is the best site of application for this energy meter?

A: This meter is best suited for main entry panels in residential apartments, offices, or commercial units where single-phase power is distributed, ensuring accurate individual consumption monitoring.

Q: What standards and certifications does this meter comply with?

A: Our Single Phase Energy Meter complies with IS 13779 and IEC 62053-21 standards, ensuring it meets stringent accuracy, safety, and performance requirements.

Q: Can I request a sample and what is the process for delivery?

A: Yes, samples can be provided as per our sample policy. Once payment terms are agreed upon, the meter will be safely handed over to our freight partner for prompt delivery at your location.

Q: What tamper and protection features does the meter offer?

A: The meter is embedded with multiple tamper-proof features and protected by an IP51 polycarbonate enclosure, ensuring both operational integrity and resistance against unauthorized access.
