Energy Meters

• Equipment Type
• Single Phase Live Tank oil filled hermetically sealed, outdoor type.

• Accuracy
• Class 0.5 or 1.0 (Typical for metering)

• Application Media
• Electrical Power Distribution

• Capacity
• Designed as per rating, refer specification sheet

• Color
• Industrial Grey/Blue

• Connecting Type
• Terminal Bushing Connectors

• Connectivity Type
• Terminal lugs/bushings

• Connector
• Porcelain Bushings

• Current Range
• 33K Volt (V)

• Dimension (L*W*H)
• Custom as per design, typical footprint less than 600x600x750 mm

• Display Type
• Other, Not Applicable (Instrument Transformer)

• Frequency
• 50 Hz (typical)

• Housing Material
• Mild Steel/CRCA with Powder Coating

• Humidity %
• Up to 95% non-condensing

• Input
• Primary: 11 kV AC

• Load Capacity
• According to class rating and burden (typically 10-30 VA, refer datasheet)

• Material
• Steel Structure

• Measurement Range
• Voltage up to 11 kV, Current as per class ratio

• Measuring Units
• Current, Voltage

• Model
• 11 kV CT PT Combined Unit

• Mounting
• Outdoor/Indoor as per installation requirements

• Operating Temperature
• -25C to +55C (typical)

• Output
• Secondary winding: typically 1A/5A for CT, 110V for PT

• Power Consumption
• Minimal (instrument transformer)

• Power Supply
• 11 kV AC

• Pressure Range
• Atmospheric

• Process Connection
• Terminal bushings for HV/LV connections

• Protection
• Oil-immersed, Hermetically Sealed with HV Insulation

• Range
• Current Transformer: 5A/1A secondary, Potential Transformer: 110V secondary

• Response Time
• Instantaneous

• Sensitivity
• Standard instrument accuracy

• Sensor Type
• Electromagnetic Induction

• Signal Type
• AC

• Stability
• High stability in rated working conditions

• Storage Temperature
• -25C to +70C

• Temperature Range
• -25C to +55C Operating

• Wind Speed
• Outdoor installation suitable for standard wind speeds

• Equipment Type
• Outdoor Current Transformer

• Accuracy
• Class 0.2, 0.5, 1.0 as per requirement

• Application Media
• Outdoor power installation

• Axis Type
• Single phase application

• Capacity
• 10-30 VA (as per specification)

• Color
• Dark green/Black body with white bushing

• Connecting Type
• Primary bolted terminal, secondary screw terminal

• Connectivity Type
• Terminal connection

• Connector
• Brass/copper terminals

• Current Range
• As per CT ratio, e.g., 100/1A, 200/5A

• Cut Size
• As per specification

• Diameter
• Dependent on primary conductor size

• Dimension (L*W*H)
• Customized as per design

• Display Type
• Other, Analog/No direct display

• Frequency
• 50/60 Hz

• Housing Material
• Porcelain/epoxy resin

• Humidity %
• Up to 95% non-condensing

• Input
• 33 kV Primary Current

• Length
• Standard 800-1200 mm

• Load Capacity
• As per ordered CT ratio, min. 10 VA

• Material
• High-grade silicon steel, epoxy insulation, porcelain bushing

• Measurement Range
• 0-33,000 V (Primary); Output 1A/5A (Secondary)

• Measuring Units
• kiloVolt (kV), Ampere (A)

• Model

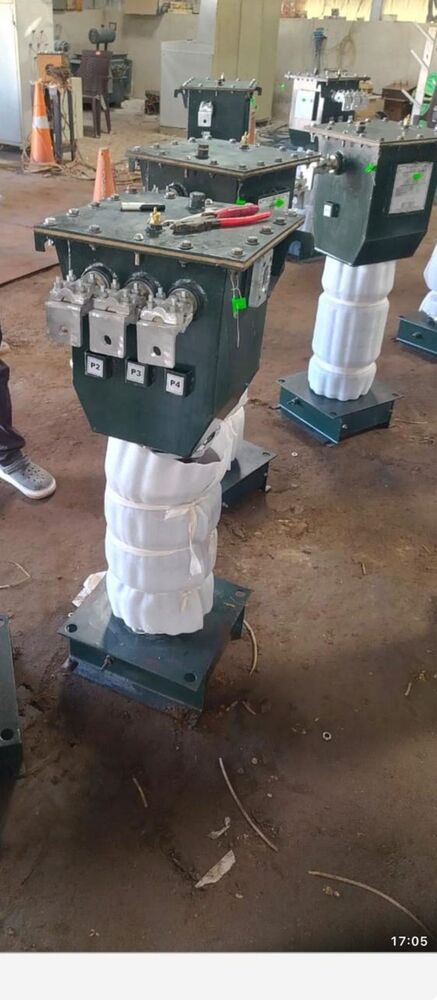

• 33 kV Current Transformer

• Mounting
• Outdoor pedestal type

• Operating Temperature
• -5C to +55C

• Output
• 1A or 5A (Secondary as per requirement)

• Power Consumption
• Low

• Power Supply
• 33 KV

• Pressure Range
• Atmospheric

• Process Connection
• Terminal connection

• Protection
• Hermetically sealed, weatherproof

• Range
• As per CT rating specification

• Resolution
• As per class accuracy

• Response Time
• Instantaneous/less than 1s

• Sensitivity
• As per accuracy class

• Sensor Type
• Electromagnetic, wound type

• Signal Type
• Current

• Stability
• High thermal and dynamic stability

• Storage Temperature
• -20C to +60C

• Temperature Range
• -5C to +55C

• Wind Speed
• Up to 160 km/h withstand
